- SMTP Gateway
- SAPconnect Gateway

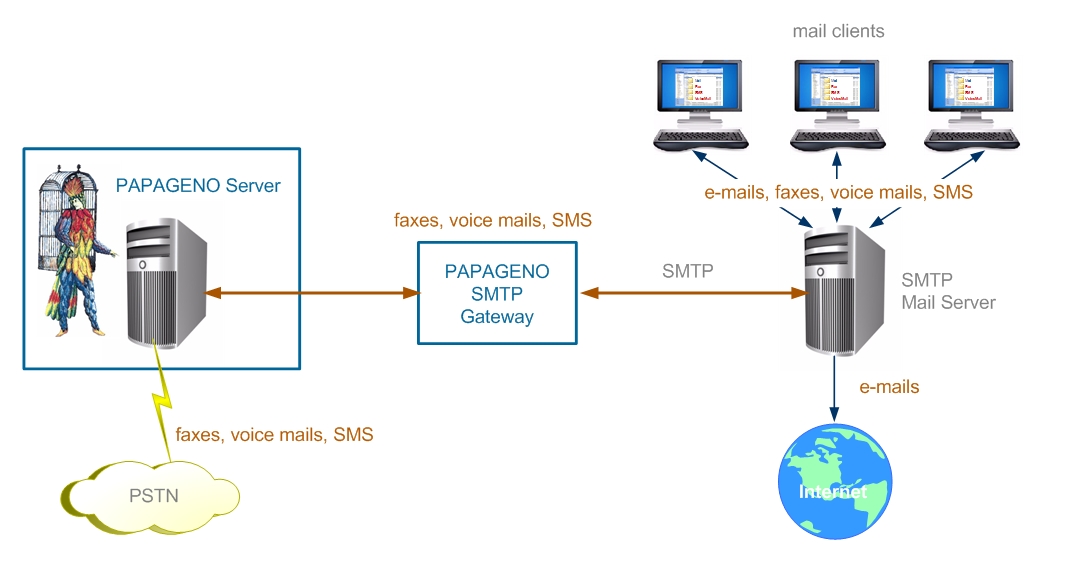

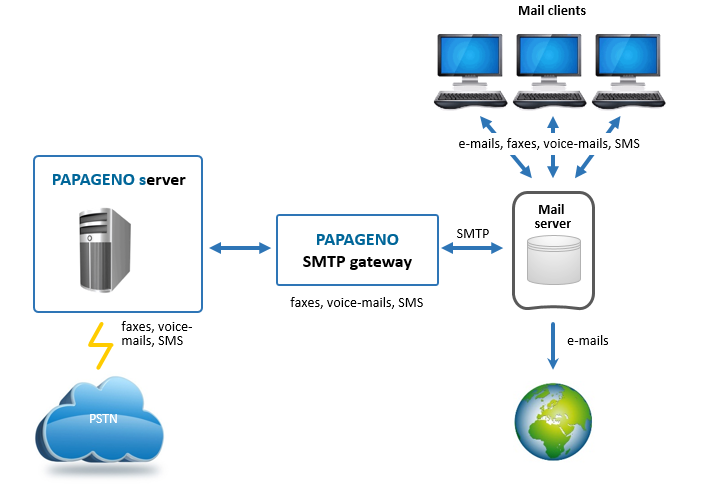

If your mail server supports the Internet standard SMTP (Simple Mail Transfer Protocol), connect to PAPAGENO using the PAPAGENO SMTP gateway.
With a PAPAGENO SMTP gateway, you can use SMS, fax, voice mail, and access your messages by phone.
An SMTP-enabled product can be used as an SMTP mail server (for example, Scalix, Open-Xchange, or Microsoft Exchange Server from 2007).
The mail client can be any product that works with your mail server. With a PAPAGENO SMTP gateway thousands of users can send and receive messages in their mail client interfaces.
Unix, Linux or Windows
Easy to Install
The PAPAGENO SMTP gateway is installed with the current PAPAGENO version. It is enabled by the entry of the license.
This Formats can be converted by the SMTP Gateway
Common formats like PostScript, ASCII, TIF as well as PCL, HPGL can be converted to fax format. Via MAPI also the formats of the Windows applications such as: .doc, .xls, .pdf.

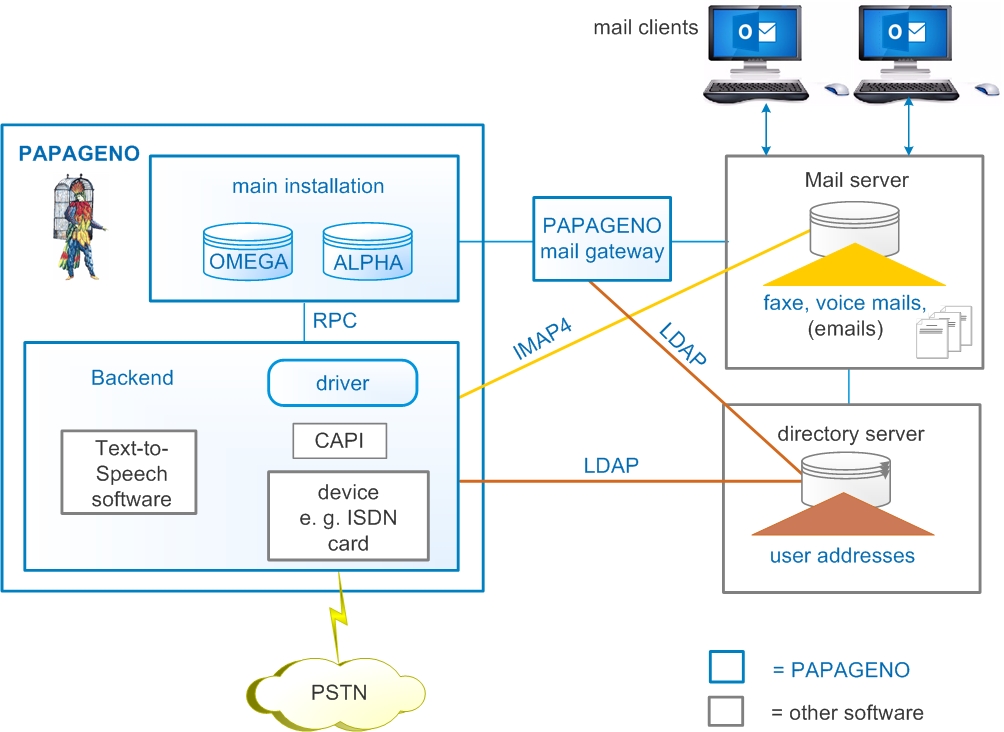

When you use a directory server
... PAPAGENO reaches this via LDAP.
User-specific send parameters (header, identification (TSI), ISDN-sender identification, etc.) can be used, since the gateway accesses this database when sending faxes via LDAP.
If IMAP4 is used in addition to LDAP, you can access all your messages stored in the mail server via any phone. You can read e-mails and SMS messages, listen to voice mails, send faxes, and send time, sender, etc. of all messages.
Via the LDAP connection between the PAPAGENO device server and the directory server the user name is fetched from the user address database while "welcome on the phone".
SMTP-enabled mail server (such as Scalix, Open Xchange, Unix Sendmail, Postfix, Microsoft Exchange-Server or Sun Java ES)
Operating system: Unix, Linux, Windows.
Can be installed on the PAPAGENO system, on a seperate system or on the mail server (mail server: port address must be changed).
The PAPAGENO-SAPconnect interface supports sending and receiving faxes, SMS messages and voice mails from all SAP ERP (formerly R/3) applications.
PAPAGENO-SAPconnect is available on Unix, Linux and Windows operating systems.
The internal SAP RFC interface connects to PAPAGENO. The external interface SAPconnect registers at a dedicated SAP ERP gateway. The SAP ERP gateway handles the communication between the internal and the external RFC interface. The assignment of the external and internal interface is handled via the so-called program ID.
SAPconnect Interface (Platform)
Per ERP system one internal SAPconnect interface is necessary.
Windows, Linux, Unix
PAPAGENO is SAP-BAPI certified.
